G.I. & ACCESSORIES

categories

A valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.

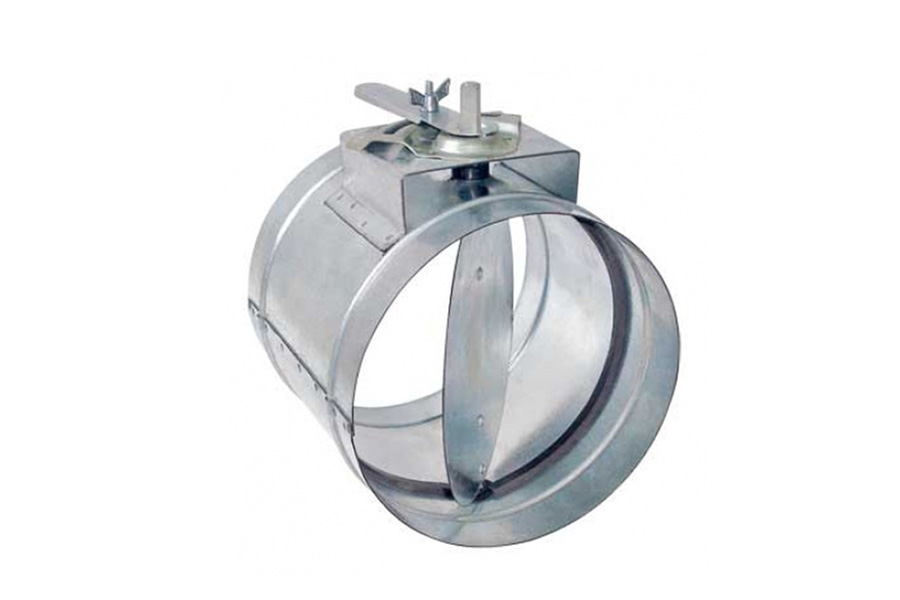

Round VCD

A valve or plate that stops or regulates the flow of air inside a duct, chimney, VAV box, air handler, or other air-handling equipment. A damper may be used to cut off central air conditioning (heating or cooling) to an unused room, or to regulate it for room-by-room temperature and climate control.

The flexible ducting connects the heating and cooling system ductwork to the air distribution. This is comprised of grills and registers that are mounted in a commercial building's ceiling or walls. Flex duct is convenient for attaching supply air outlets to more rigid ductwork made from sheet metal.(فليكسبل او قنوات مرنه)

flexible air duct (فليكسبل-قنوات مرنه-خريطه حساب معامل الأحتكاك )with friction factor curve

The flexible ducting connects the heating and cooling system ductwork to the air distribution. This is comprised of grills and registers that are mounted in a commercial building's ceiling or walls. Flex duct is convenient for attaching supply air outlets to more rigid ductwork made from sheet metal.(فليكسبل او قنوات مرنه)

Download

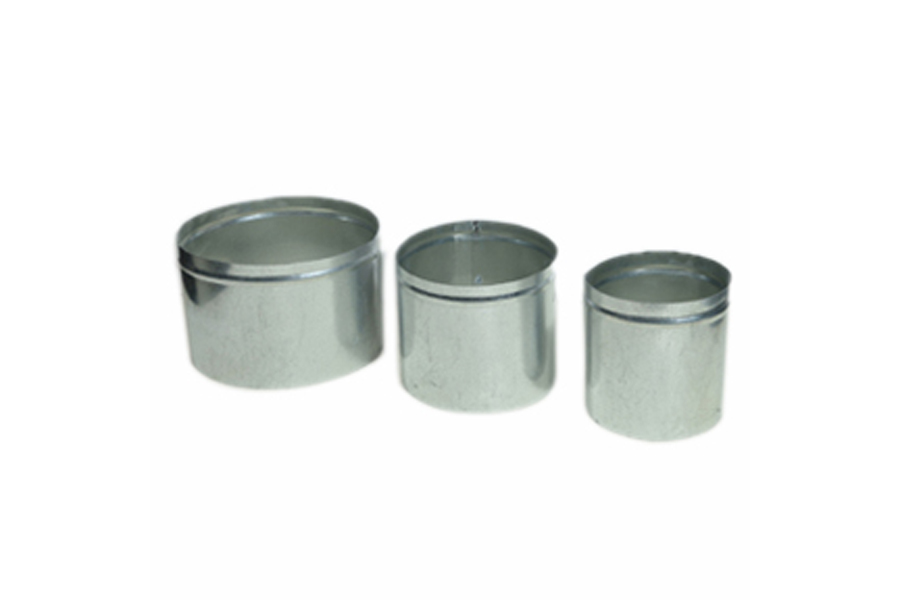

GI Ring for connecting Round VCD to ducting.

VCD Ring

GI Ring for connecting Round VCD to ducting.

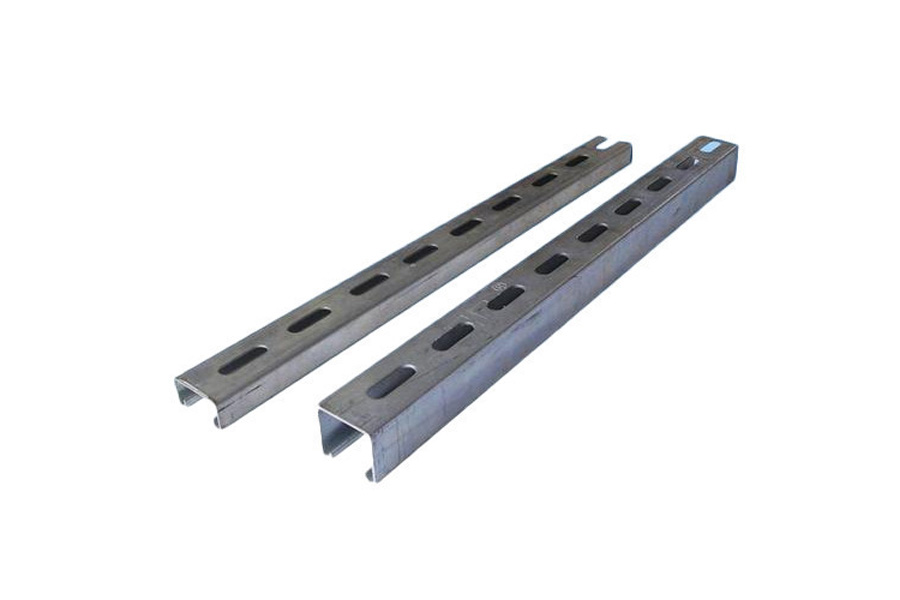

Also known as C beams, structural beams with C shaped cross section. Top and bottom plates of a C channel are named as flanges and the vertical plate which connects the flanges is named as web.

C Channel

Also known as C beams, structural beams with C shaped cross section. Top and bottom plates of a C channel are named as flanges and the vertical plate which connects the flanges is named as web.

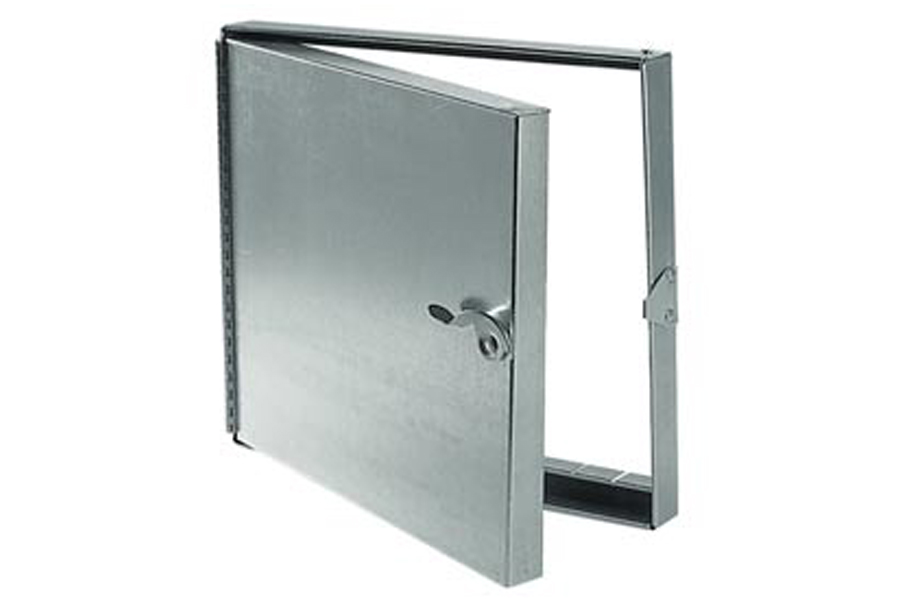

Fire rated access door options include upward swinging or inward opening doors, self-latching or automatically closing latches, automatic or manual panel releases, and piano hinges that open a full 180 degrees for greater range of motion.

GI Access Doors

Fire rated access door options include upward swinging or inward opening doors, self-latching or automatically closing latches, automatic or manual panel releases, and piano hinges that open a full 180 degrees for greater range of motion.

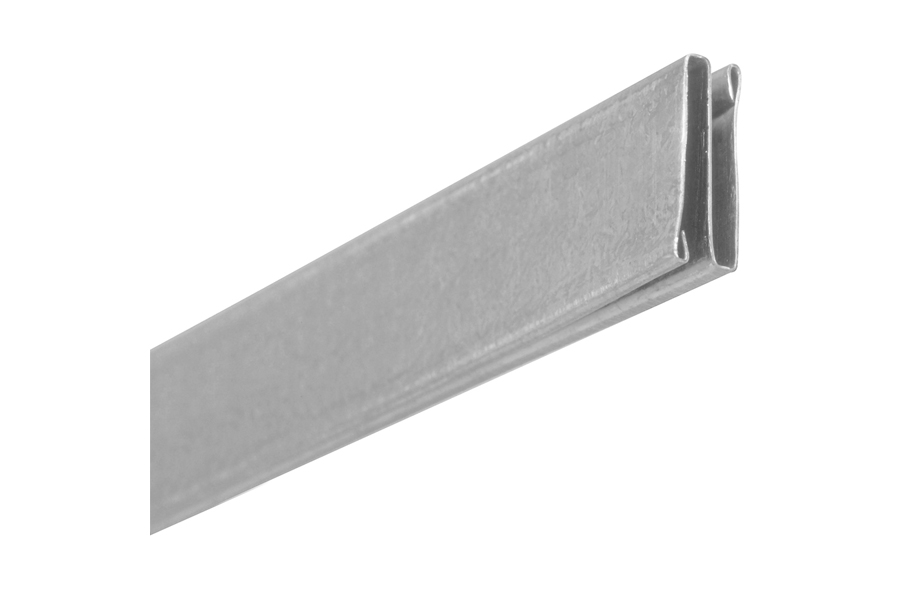

Used to join sections of rectangular duct in HVAC systems. These cleats are sleeves of galvanize steel that help to securely assemble the top and bottom (

S Cleats

Used to join sections of rectangular duct in HVAC systems. These cleats are sleeves of galvanize steel that help to securely assemble the top and bottom ("S") and left and right sides (Drive) of rectangular duct runs.

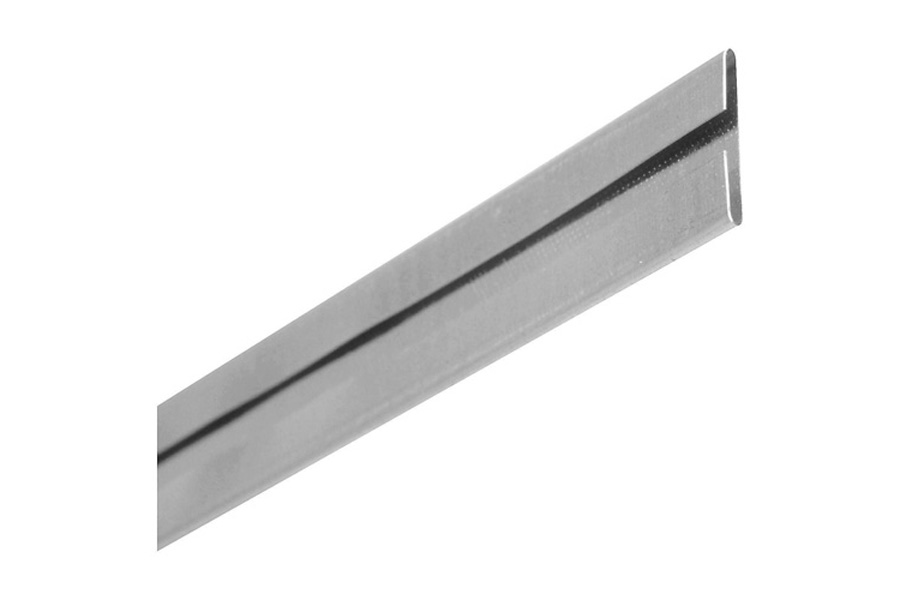

Cleat profile as a means of joining the unformed overlapping edges when making in-line duct connections.

C Cleats

Cleat profile as a means of joining the unformed overlapping edges when making in-line duct connections.

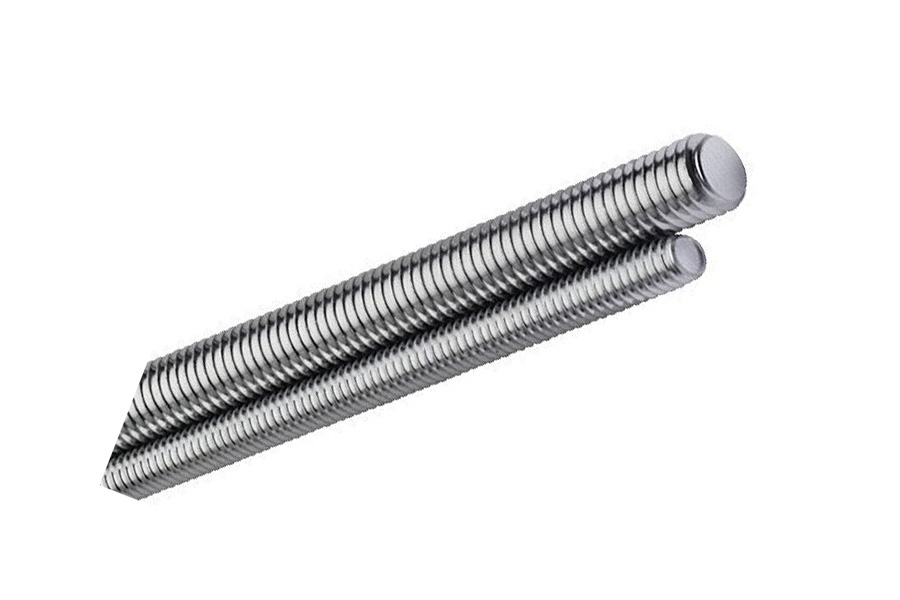

Threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod. They are designed to be used in tension.

Threaded Rod

Threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod. They are designed to be used in tension.

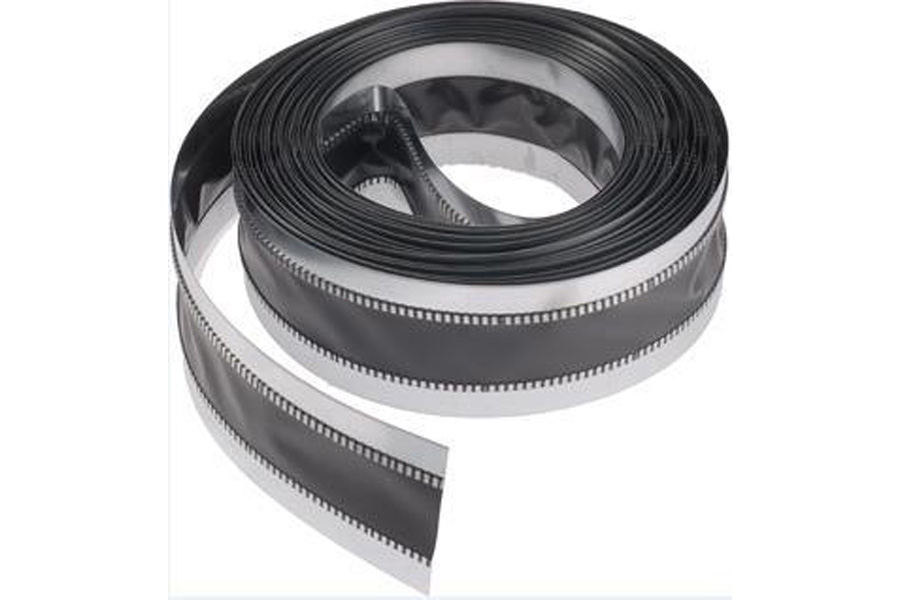

In an air-conditioning system, a short length of flexible non-porous material that is inserted between metal ductwork and a metal air diffuser (or air register); prevents the transmission of vibration between these components of the system.

Duct Connector

In an air-conditioning system, a short length of flexible non-porous material that is inserted between metal ductwork and a metal air diffuser (or air register); prevents the transmission of vibration between these components of the system.

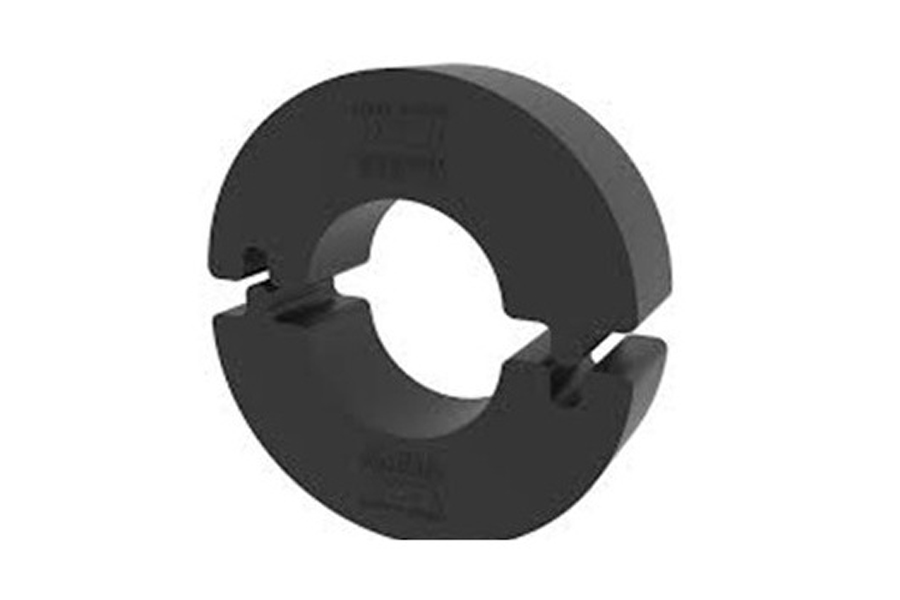

A convenient and effective means of preventing crushing of insulation at pipe support locations of chilled water, condenser water and domestic hot / cold water installations.

Rubber Support Insert

A convenient and effective means of preventing crushing of insulation at pipe support locations of chilled water, condenser water and domestic hot / cold water installations.

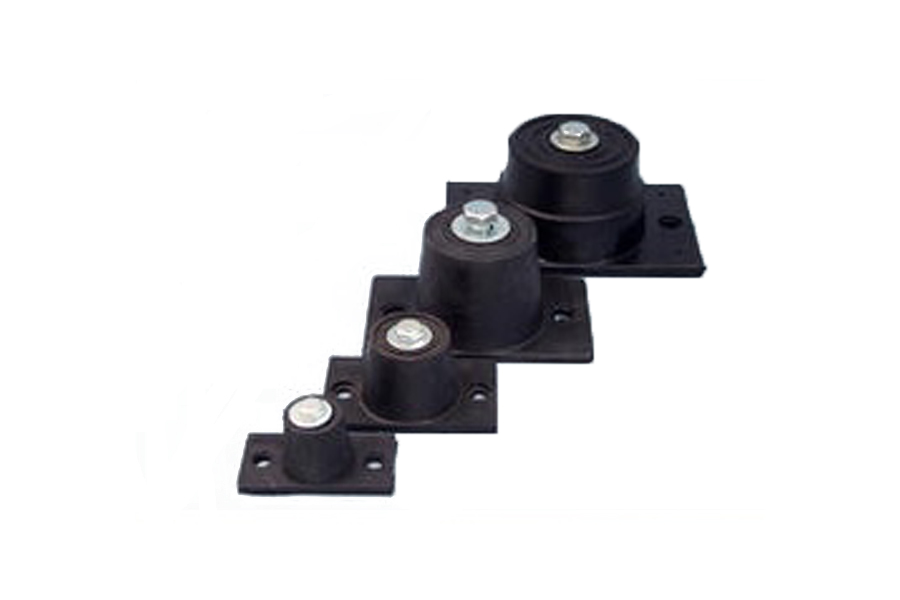

Used for preventing noise and high-frequency vibration on a variety of industrial machines.

Neoprene Floor Mounts

Used for preventing noise and high-frequency vibration on a variety of industrial machines.

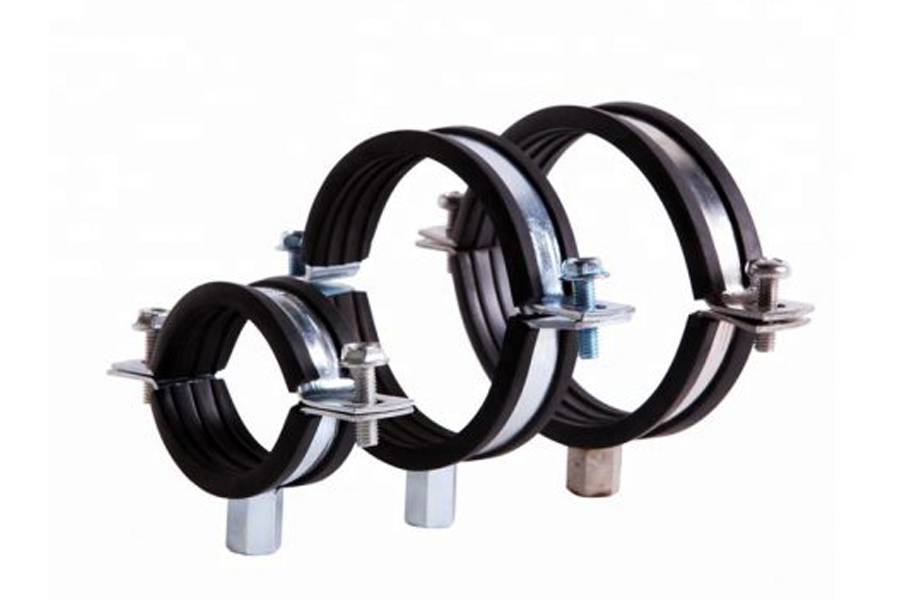

Grooved construction for added strength. Used for mounting of pipes to the walls (vertical/horizontal). Hanging type is M8/M10 combi nut. M10/M12 provided as option. High Quality Rubber lining for suppression of sound & vibrations. Lock bolts with combi cross recessed head.

Rubber Lined Split Clamps

Grooved construction for added strength. Used for mounting of pipes to the walls (vertical/horizontal). Hanging type is M8/M10 combi nut. M10/M12 provided as option. High Quality Rubber lining for suppression of sound & vibrations. Lock bolts with combi cross recessed head.

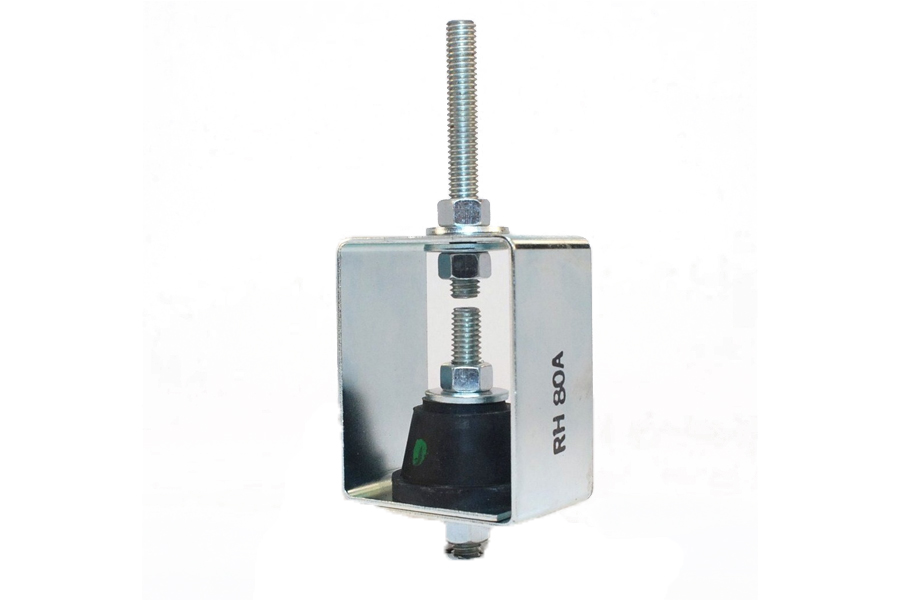

Designed to be effective for high frequency attenuation problems either effecting a protected space or emanating from that space to surrounding locations

Neoprene Hangers

Designed to be effective for high frequency attenuation problems either effecting a protected space or emanating from that space to surrounding locations

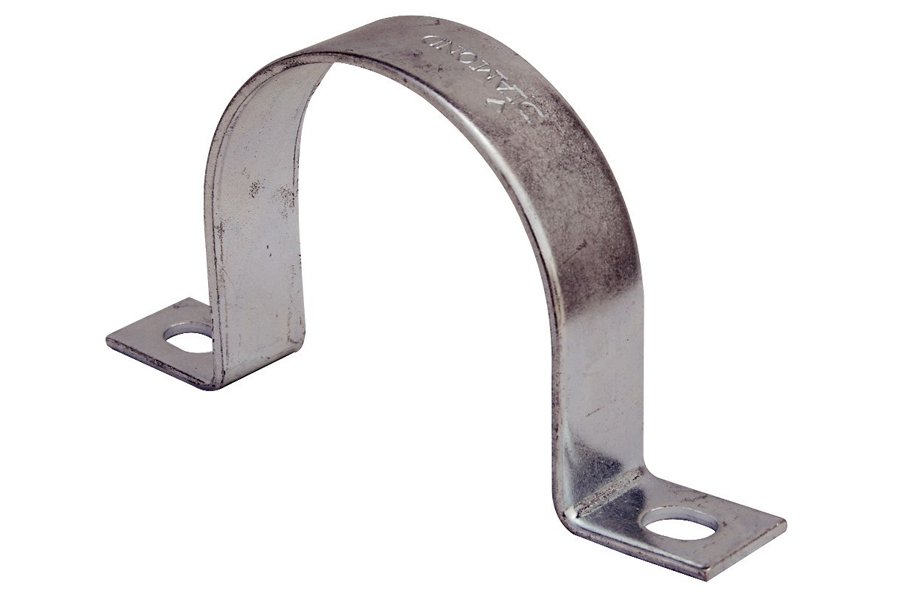

A fastening device used to hold or secure objects tightly together to prevent movement or separation through the application of inward pressure.

U-Strap Clamps

A fastening device used to hold or secure objects tightly together to prevent movement or separation through the application of inward pressure.

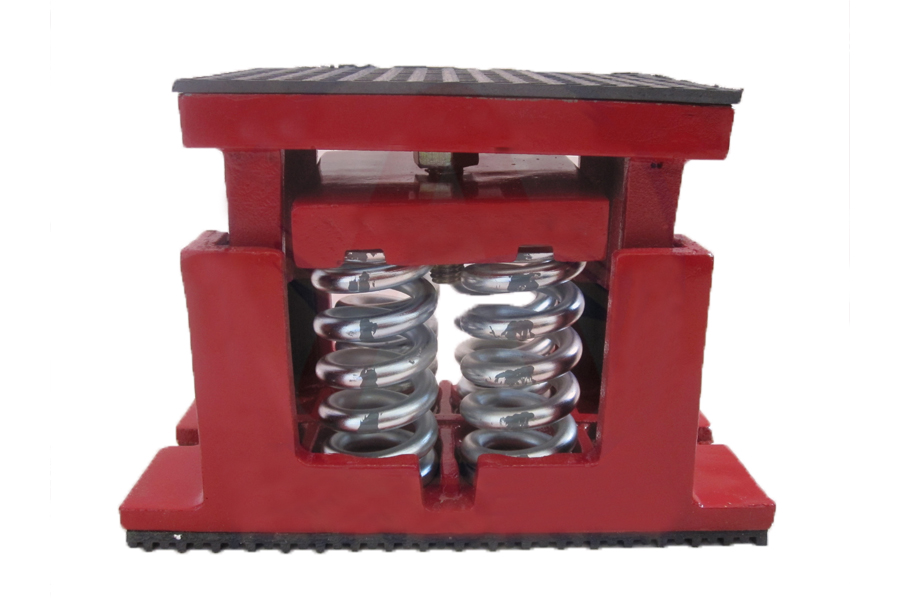

It is used for isolating floor mounted sources of noise in diverse mechanical equipment such as condensing units, reciprocating compressors, packaged air handling units, roof top air handling units and air cooled / water cooled chillers

Cased Spring Mount

It is used for isolating floor mounted sources of noise in diverse mechanical equipment such as condensing units, reciprocating compressors, packaged air handling units, roof top air handling units and air cooled / water cooled chillers

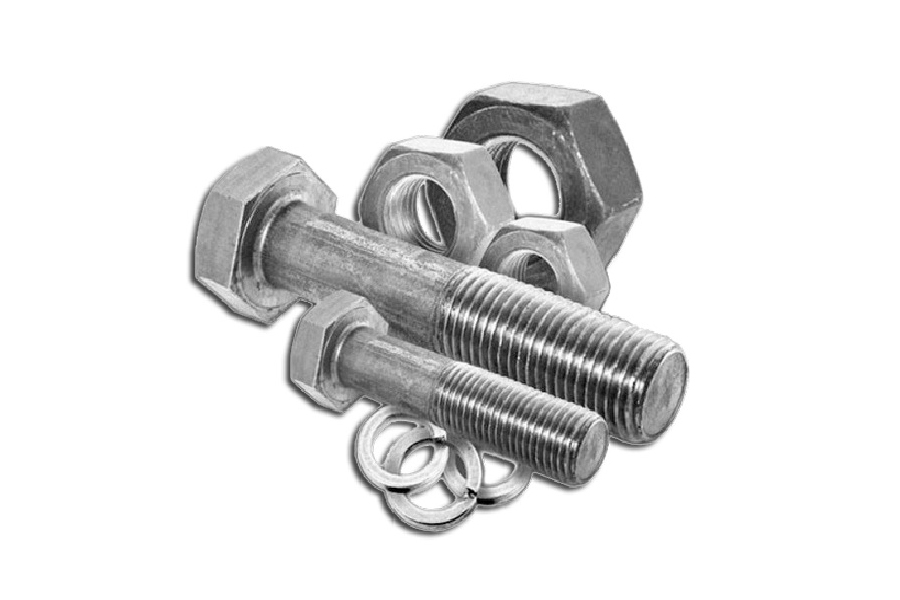

Designed to engage with the toolused to tighten them. Some bolt heads instead lock the bolt in place, so that it does not move and a tool is only needed for the nut end

Bolt, Nuts & Washer

Designed to engage with the toolused to tighten them. Some bolt heads instead lock the bolt in place, so that it does not move and a tool is only needed for the nut end

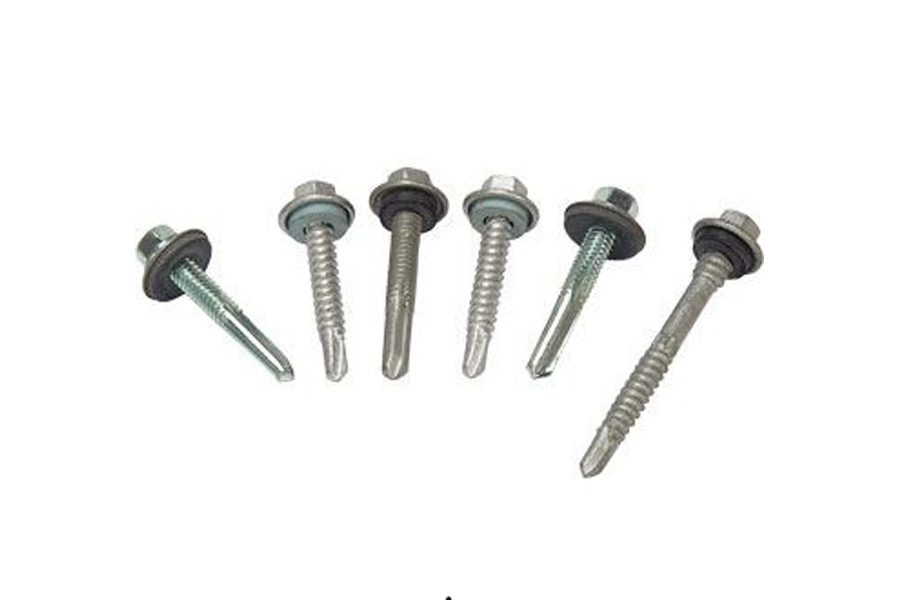

A preliminary drill-like fluted tip that looks much like the tip of a center drill. These screws combine a thrilling-like action and the fastener installation itself into only one driving motion.

Self Drilling Screws

A preliminary drill-like fluted tip that looks much like the tip of a center drill. These screws combine a thrilling-like action and the fastener installation itself into only one driving motion.

Designed with a full carbide head and unique head and helix design to drill faster than any other drill bits - in concrete, brick, masonry and more.

Drill Bit - Hilti type

Designed with a full carbide head and unique head and helix design to drill faster than any other drill bits - in concrete, brick, masonry and more.

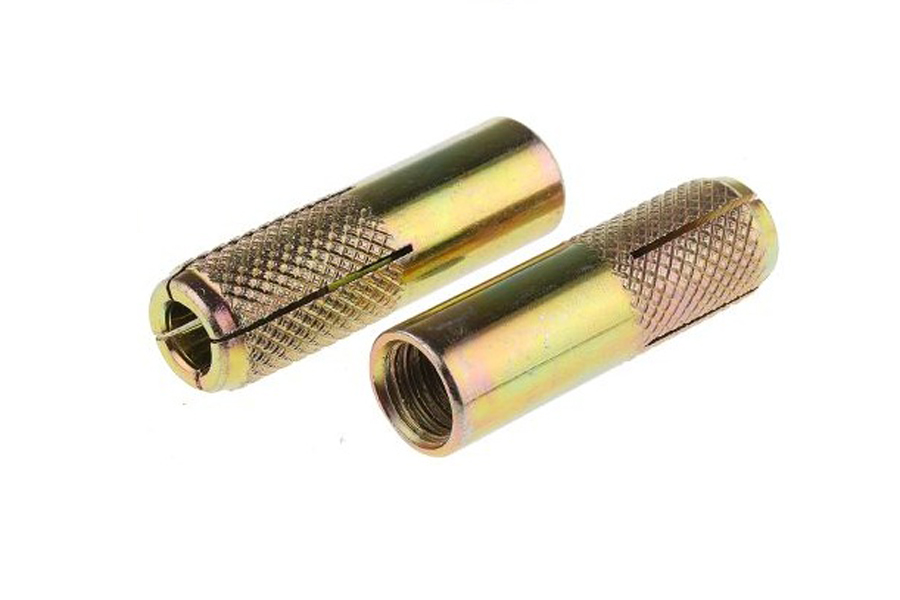

Consist of a threaded end, to which a nut and washer can be attached for the external load. Can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.

Unifix (Anchor Bolt)

Consist of a threaded end, to which a nut and washer can be attached for the external load. Can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.

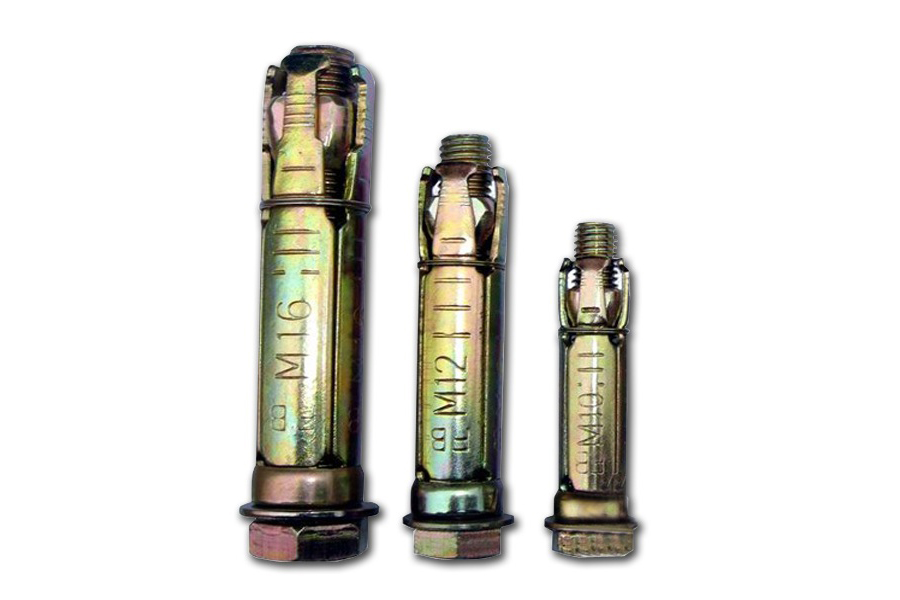

Consist of a threaded end, to which a nut and washer can be attached for the external load. Can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.

Fix Bolt (Anchor Bolt)

Consist of a threaded end, to which a nut and washer can be attached for the external load. Can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.

A fiber or plastic insert used to enable the attachment of a screw in material that is porous or brittle or that would otherwise not support the weight of the object attached with the screw. It is a type of anchor that, for example, allows screws to be fitted into masonry walls.

Wall Plug Fisher

A fiber or plastic insert used to enable the attachment of a screw in material that is porous or brittle or that would otherwise not support the weight of the object attached with the screw. It is a type of anchor that, for example, allows screws to be fitted into masonry walls.

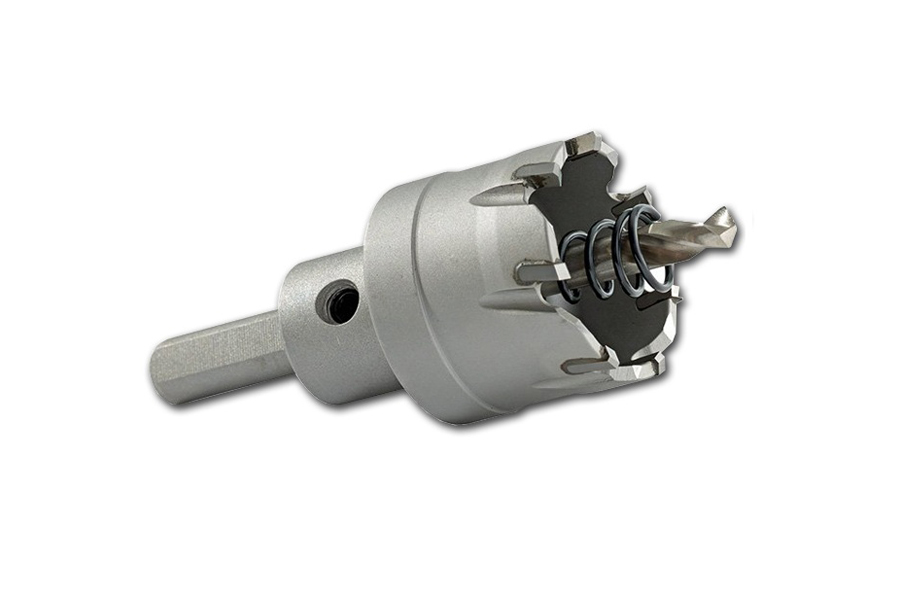

A saw blade of annular (ring) shape, whose annular kerf creates a hole in the workpiece without having to cut up the core material. It is used in a drill.

TST Hole Saw

A saw blade of annular (ring) shape, whose annular kerf creates a hole in the workpiece without having to cut up the core material. It is used in a drill.
